Double Premium Switch for X Touring Headlight

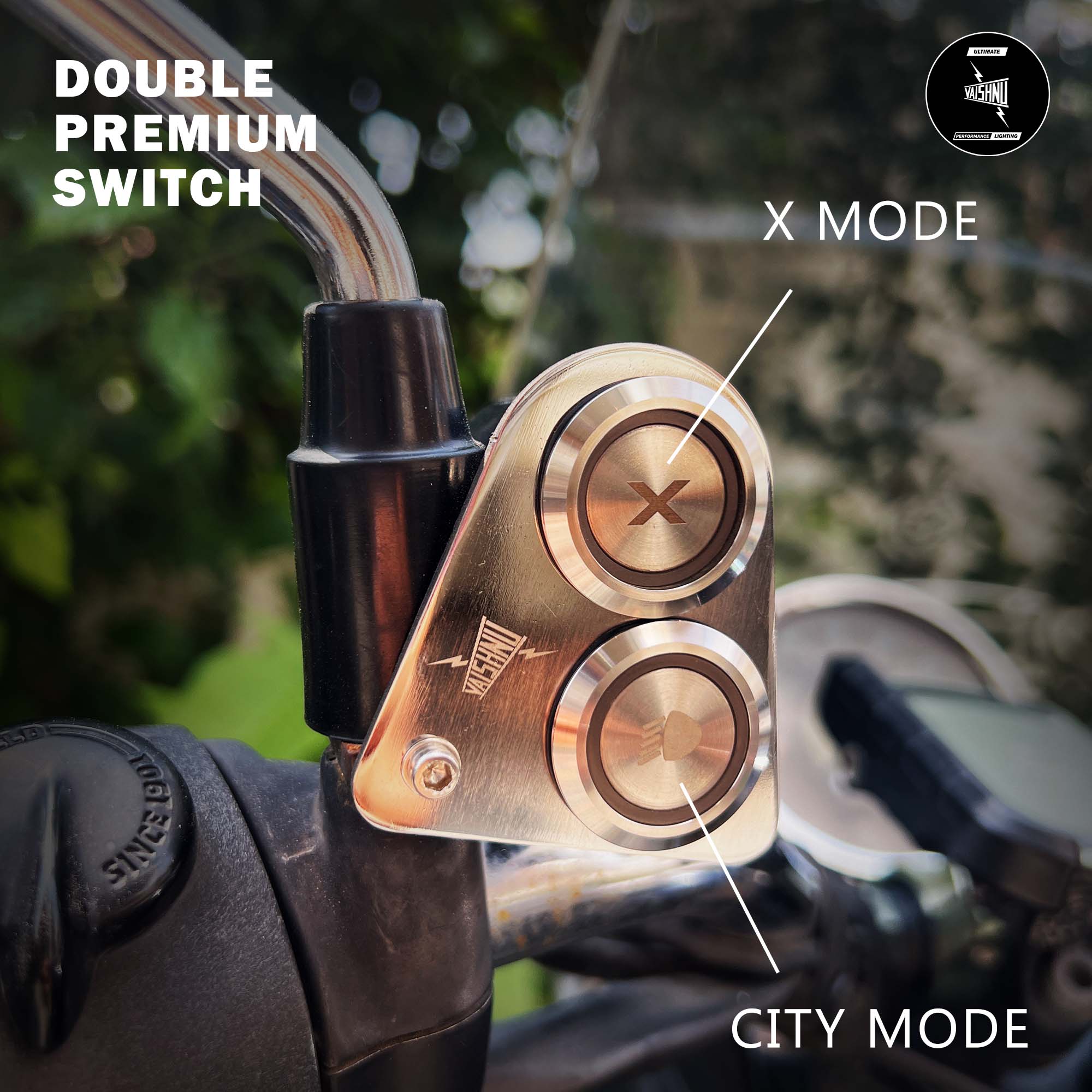

Double Premium Switch (For X Touring Headlight)

Complete control. Seamless integration. Built to match the machine.

Designed exclusively for the VAISHNU X Touring Headlight, the Double Premium Switch brings intuitive control over both everyday lighting and X Mode functionality—without disrupting your riding flow.

It eliminates the need for manual connections and transforms the system into a fully integrated, plug & play experience.

How It Works

Low Beam Control

The dedicated Low Beam Switch operates the primary headlight.

• Turn ON/OFF the main headlight independently
• Useful during daytime to avoid unnecessary power draw
• Toggle ON–OFF–ON to cycle through the 3 color modes

X Mode Control

The second switch is dedicated to enabling or disabling X Mode.

When Activated (Switch ON):

• X Mode synchronises automatically with your motorcycle’s High Beam
• Switching from Low → High Beam activates:
  • Hyper Spot Beam
  • Flood Beam
• Switching back to Low Beam deactivates X Mode instantly

When Deactivated (Switch OFF):

• X Mode remains inactive regardless of High Beam usage
• Headlight functions in standard Low/High Beam setup
• Ideal for city riding with controlled illumination and minimal glare

Why It Matters

Without the Double Premium Switch, X Mode requires a manual connection via the wiring harness.

With it, you get:

• Automatic synchronisation with OEM controls
• Effortless switching between City Mode and X Mode
• Cleaner installation with no manual intervention required

Design & Build

• Full Stainless Steel Body for durability and premium feel
• Push Button ON/OFF mechanism (tactile, precise operation)
• Retro-inspired design that blends seamlessly with motorcycle aesthetics

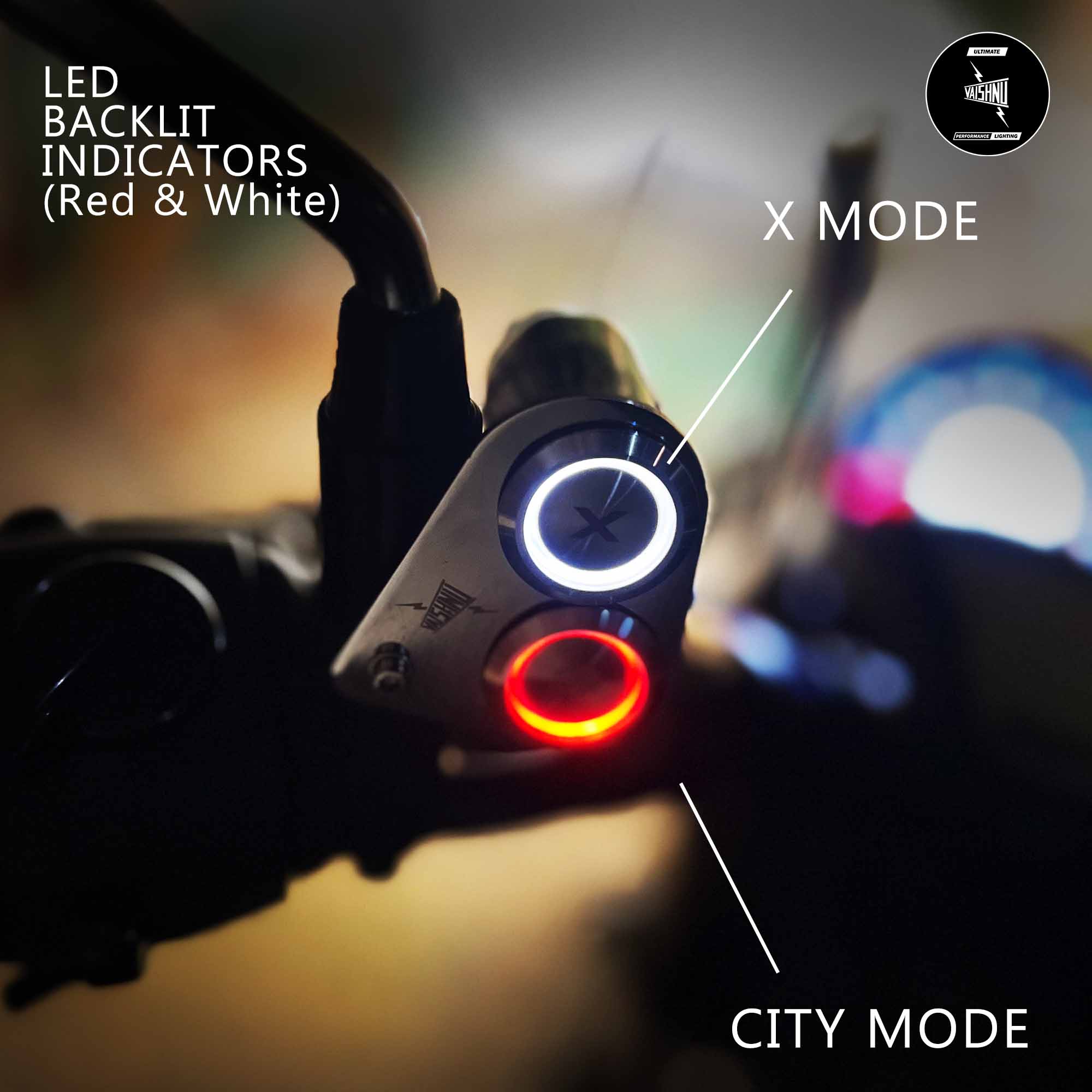

Backlit Indicators

• Low Beam Switch: Red LED ring (illuminates when ON)
• X Mode Switch: White LED ring (illuminates when ON + High Beam active)

Mounting Options

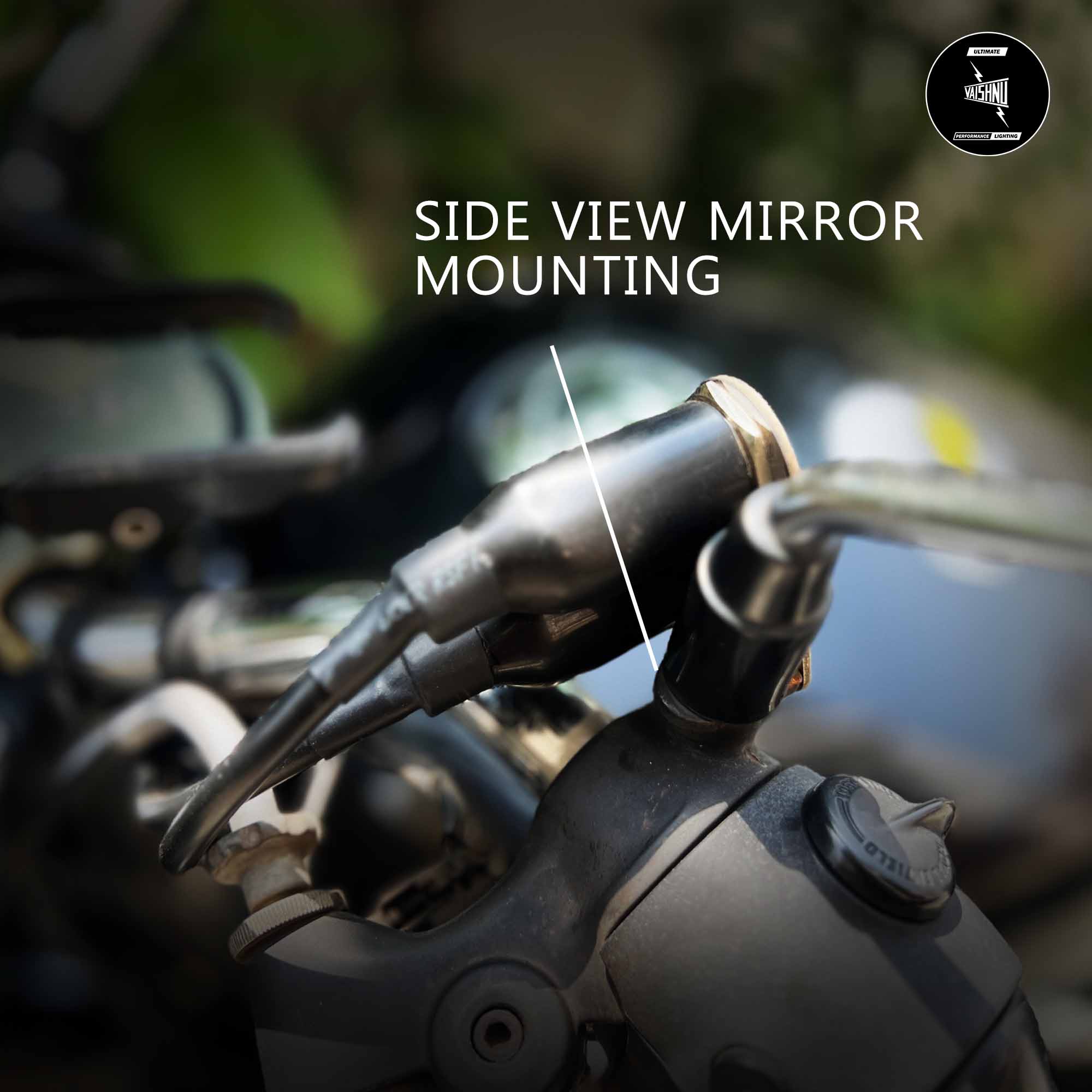

• Side View Mirror Mount

(Refer images for configurations)

Technical Specifications

• Voltage: 12V
• Operating Temperature: -20°C to +55°C
• Body Material: Stainless Steel
• Lifecycle: ~100,000 cycles
• Protection: IP65 Rated
• Warranty: 1 Year

Installation Note

• When ordered along with the Touring Headlight, the Basic Switch is excluded
• Wiring harness is pre-configured for true Plug & Play installation

If installed separately at a later stage:

• One additional ground cable connection is required
• Dedicated port is already provided in the wiring harness

A Smarter Way to Control X Mode

The Double Premium Switch doesn’t add complexity.
It removes it.

From manual control to seamless integration — exactly how it should be.
